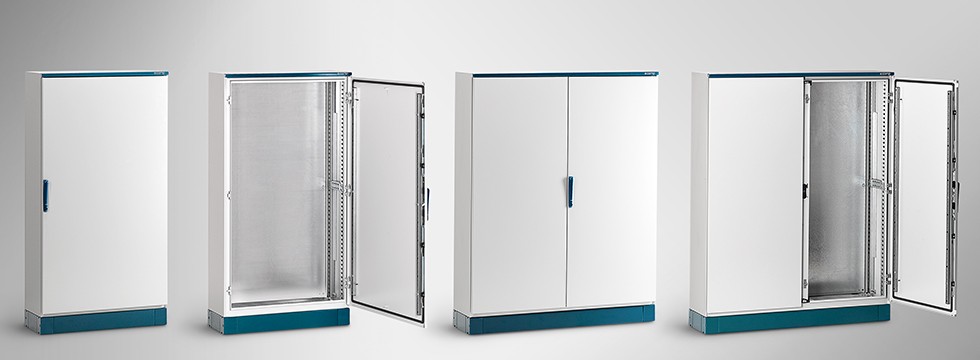

Description
- Completely welded compact enclosure
- Possibility of wall mounting installation
- 3 points locking system
- Mounting Plate included in the supply
Thickness
- Door: 2.00mm thick sheet steel with stiffening frame
- Enclosure Frame: 1.5mm
- Mounting Plate: 2.5mm
- Plinth: Corner Pieces 2.5mm, front&side crosspieces: 2.00mm
- Lock: 3mm lever-operated double bar locking system
Protection
- IP 55 complying with IEC EC62208; EN60529
- NEMA 12 according to UL508A; UL50
- Impact resistance IK10 complying with IEC EN2208; EN62202
Surface finish: RAL 7035, Roof and Plinth: RAL 5020
| E COMP 800x1200x400 IP 55, RAL 7035 | |
|---|---|
| ECOMP81240 | COMPACT MONOBLOC WELDED ENCLOSURE. MOUNTING PLATE INCLUDED |
| E COMP 800x1400x300 IP 55, RAL 7035 | |
|---|---|
| ECOMP81430 | COMPACT MONOBLOC WELDED ENCLOSURE. MOUNTING PLATE INCLUDED |
| E COMP 800x1400x400 IP 55, RAL 7035 | |
|---|---|
| ECOMP81440 | COMPACT MONOBLOC WELDED ENCLOSURE. MOUNTING PLATE INCLUDED |
| E COMP 1000x1400x400 IP 55, RAL 7035 | |
|---|---|
| ECOMP101440 | COMPACT MONOBLOC WELDED ENCLOSURE. MOUNTING PLATE INCLUDED |
Plinth for EMOX
| Plinth for ECOMP 800×300, H=10cm | |
|---|---|
| EUZE-A100 | UNIVERSAL CORNER PIECE h=100 (set 4) |
| EUZE-T0800 | FRONTAL/LATERAL CROSSPIECE 800×100 (set 2) |
| EUZE-T0300S | E COMP SIDE PLINTH CROSSPIECE D=300 (set 2) |
| Plinth for ECOMP 800×400, H=10cm | |
|---|---|
| EUZE-A100 | UNIVERSAL CORNER PIECE h=100 (set 4) |
| EUZE-T0800 | FRONTAL/LATERAL CROSSPIECE 800×100 (set 2) |
| EUZE-T0400C | E COMP SIDE PLINTH CROSSPIECE D=400 (set 2) |
| Plinth for ECOMP 1000×400, H=10cm | |
|---|---|
| EUZE-A100 | UNIVERSAL CORNER PIECE h=100 (set 4) |
| EUZE-T1000 | FRONTAL/LATERAL CROSSPIECE 100×1000 (set 2) |
| EUZE-T0400C | E COMP SIDE PLINTH CROSSPIECE D=400 (set 2) |
