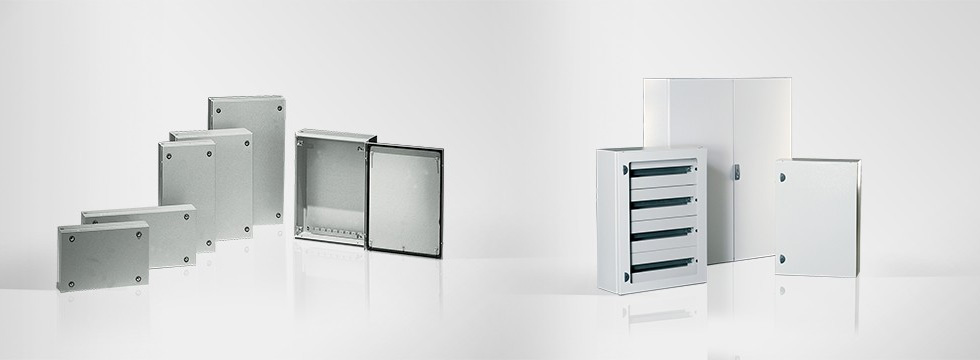

ST Boxes enclosure & door manufactured
- 1.5mm thick sheet steel
- Mounting Plate included in the supply, manufactured from
- 2.5mm thick sendzimir sheet steel
SI Boxes enclosure & door manufactured
- 12/10 mm sheet steel
- Mounting Plate included in the supply, manufactured from
- 20/10 mm galvanized sheet steel
Protection:
- IP 66 complying with IEC EC62208; EN60529
- NEMA 4 according to UL508A; UL50
- impact resistance IK10 complying with IEC EN2208; EN62202
Surface finish: RAL 7035
Protection:
- IP 55 complying with IEC EC62208; EN60529
- NEMA12 according to UL508A; UL50
- Impact resistance IK10 complying with IEC EN2208; EN62202
Surface finish: RAL 7035
| SI3420 | SI ENCLOSURE WITH MOUNTING PLATE 300w x 400h x 200d |
| SI4625 | SI ENCLOSURE WITH MOUNTING PLATE 400w x 600h x 250d |
| SI4520 | SI ENCLOSURE WITH MOUNTING PLATE 400w x 500h x 200d |
| SI5625 | SI ENCLOSURE WITH MOUNTING PLATE 500w x 600h x 250d |
| SI5725 | SI ENCLOSURE WITH MOUNTING PLATE 500w x 700h x 250d |
| SI6420 | SI ENCLOSURE WITH MOUNTING PLATE 600w x 400h x 200d |
| SI6630 | SI ENCLOSURE WITH MOUNTING PLATE 600w x 600h x 300d |
| ST4620 | ST BOX WITH MOUNTING PLATE 400w x 600h x 200d |
| ST6620 | ST BOX WITH MOUNTING PLATE 600w x 600h x 200d |
| ST6825 | ST BOX WITH MOUNTING PLATE 600w x 800h x 250d |
| ST6830 | ST BOX WITH MOUNTING PLATE 600w x 800h x 300d |
| ST61025 | ST BOX WITH MOUNTING PLATE 600w x 1000h x 250d |
| ST81030 | ST BOX WITH MOUNTING PLATE 800w x 1000h x 300d |
| ST81230 | ST BOX WITH MOUNTING PLATE 800w x 1200h x 300d |
| SDWC-010 | WALL MOUNTING BRACKETS (set 4) |
